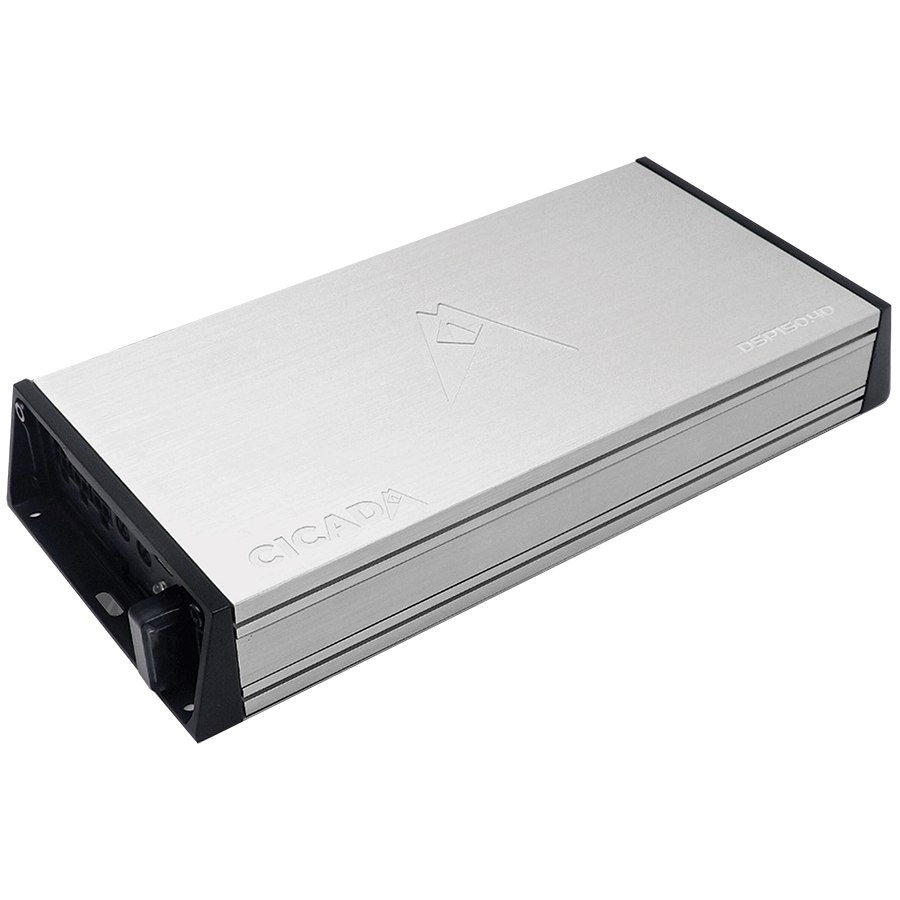

DSP150.4D AMPLIFIER

DSP CONTROLLED 4 CHANNEL POWER AMPLIFIER

  • 4 X 70 WRMS into 4 ohms @ 12.5 Vdc

  • 4 X 92 WRMS into 4 ohms @ 14.4 Vdc

  • 4 X 115 WRMS into 2 ohms @ 12.5 Vdc

  • 4 X 152 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

  • 2 X 218 WRMS into 4 ohms @ 12.5 Vdc

  • 2 X 300 WRMS into 4 ohms @ 14.4 Vdc

  • Frequency response – 20-20,000 +/- 3dB THD < 0.5%

  • Operating Voltage: 8V – 16V

  • Current Draw (Music): 40 A

  • Current Draw (Max): 80 A

  • Recommended Fuse (Music): 40 A

  • Total Efficiency: 79%

  • Damping Factor: 200

  • SNR: 91dB

  • DSP Crossover HPF/LPF: 0 TO 20kHz

  • Slope configurable 6/12/18/24/48dB

  • DSP PEQ – 8 BANDS

  • Q’s Adjustable from 0.05 – 20

  • THD + N (10% Rated Power): 0.1%

  • Product Dimensions (Inches / Millimeters): 8.875 x 4.0 x 1.4 in / 225.4 x 103 x 36 mm
